CADMAPPER alternative: CAD ATLAS

If you have used CADMAPPER, you know what a CAD file from open map data looks like. CAD ATLAS makes the same kind of file for architecture work, and in our view it is the best fit for architects. Every image on this page is CAD ATLAS data. Compare it with the files you know.

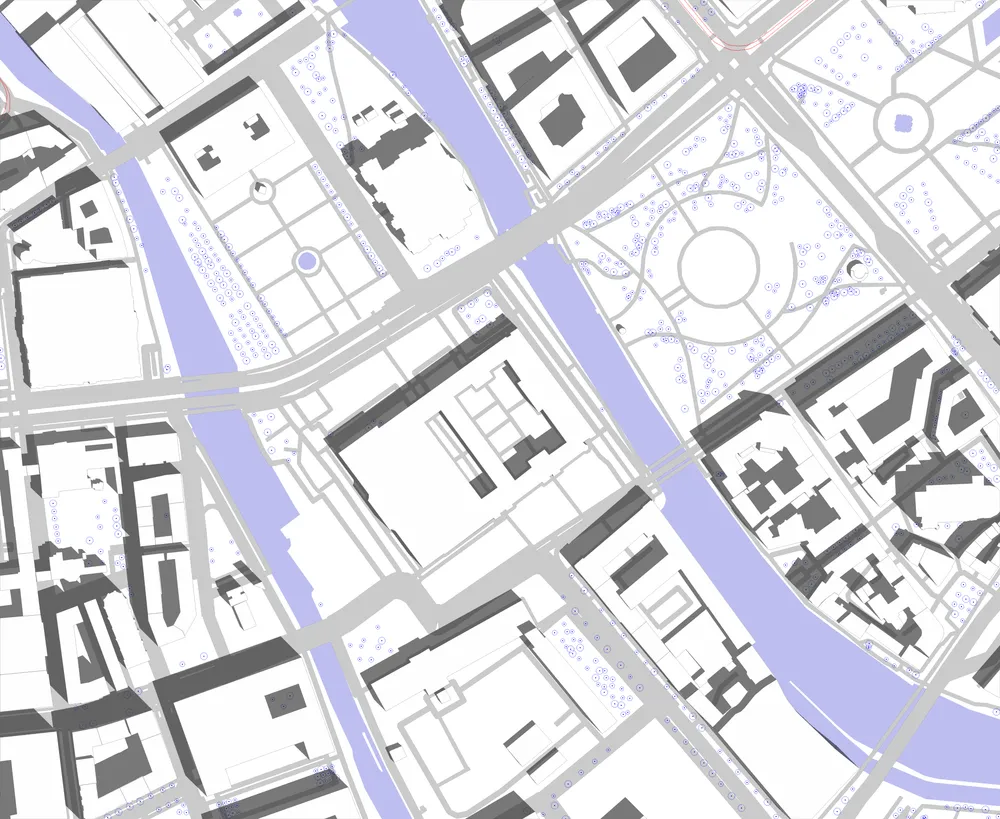

CAD ATLAS · Site plan · Berlin — CAD ATLAS previews. Switch the city and the view, or turn the 3D model.© OpenStreetMap contributors · Overture Maps

Streets you can hatch

Vienna's inner city with the whole street space filled in one hatch — Vienna, CAD ATLAS data: the street space as one closed surface, hatched in one go.© OpenStreetMap contributors · Overture Maps

Streets come as closed surfaces at their real width, joined at every crossing. Pavements are included where they are mapped. Fill the layer and the street space is done.

A height for every building

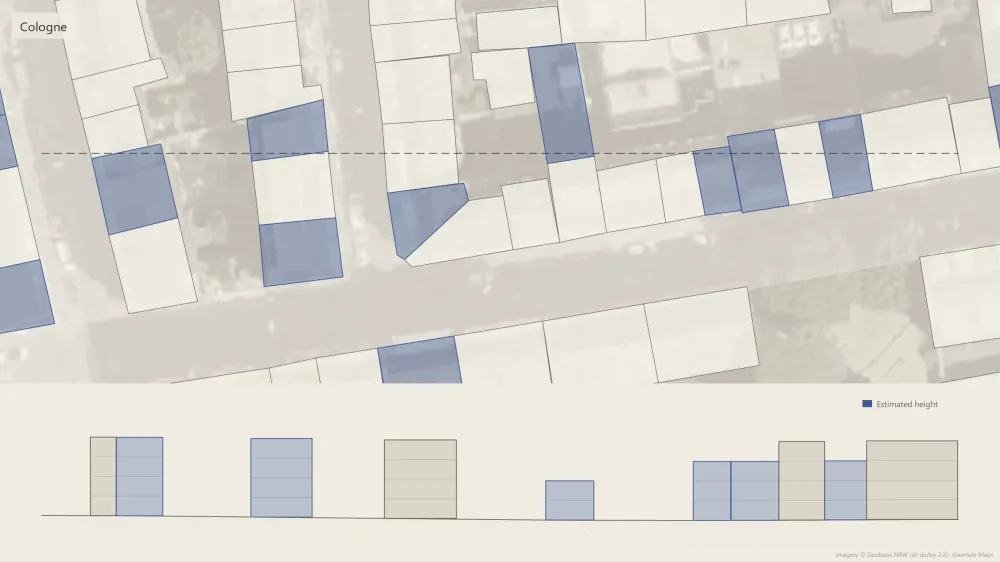

Plan and street section through a Cologne block, with estimated heights in blue — Cologne, CAD ATLAS data: published heights in grey, heights from our own model in blue.Imagery © Geobasis NRW (dl-de/by-2.0) · Overture Maps

Where a height is published, we use it as published. Where there is none, our own model estimates it from the footprint and the street around it, so every building can be extruded and cast a shadow.

Shadows as vectors

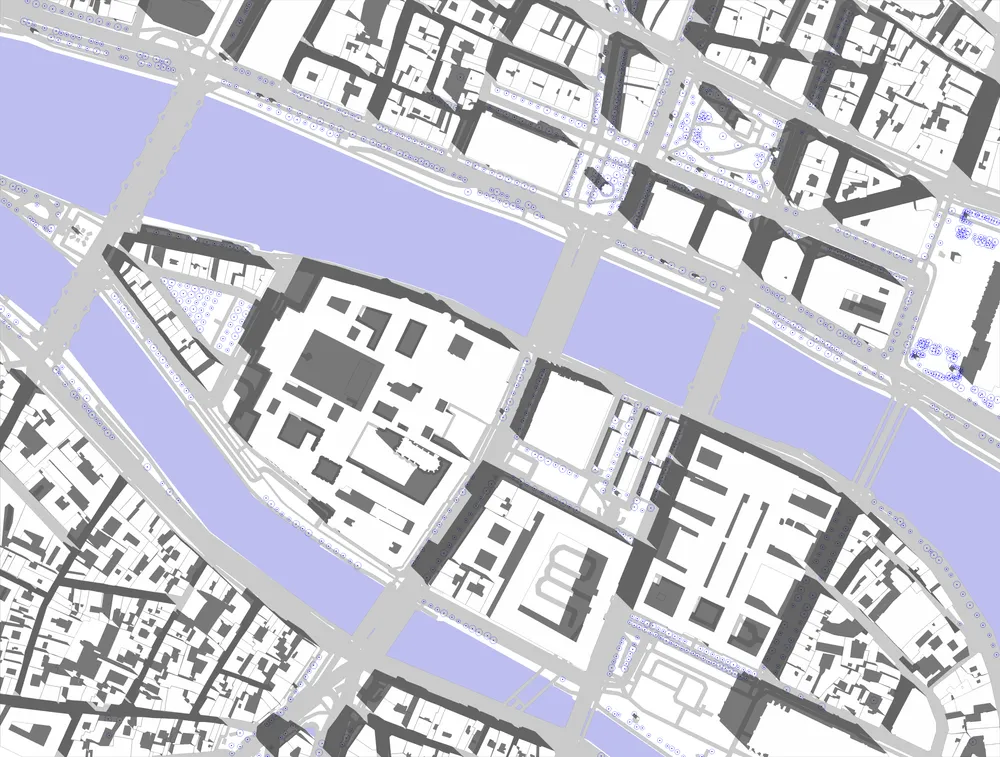

CAD ATLAS site plan of the Île de la Cité in Paris with vector shadows — Paris, Île de la Cité, CAD ATLAS data. The shadows are their own layer.© OpenStreetMap contributors · Overture Maps

You choose the light direction before you download. The shadows are closed vector surfaces, so you can give them any colour and transparency, or switch them off.

Trees, water and terrain

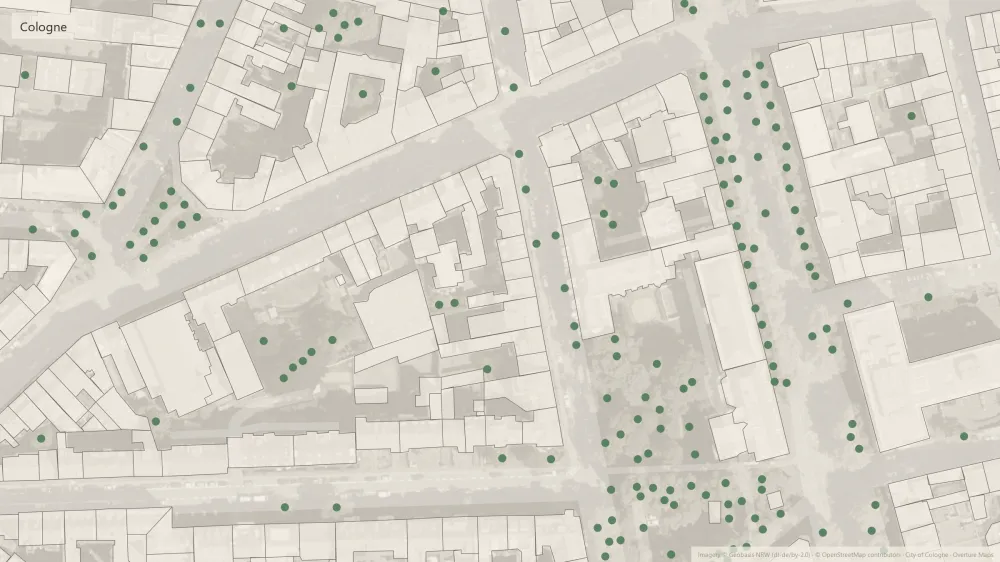

Cologne neighbourhood with every tree marked — Cologne, CAD ATLAS data: trees from city registers, mapping and aerial detection.Imagery © Geobasis NRW (dl-de/by-2.0) · © OpenStreetMap contributors · City of Cologne · Overture Maps

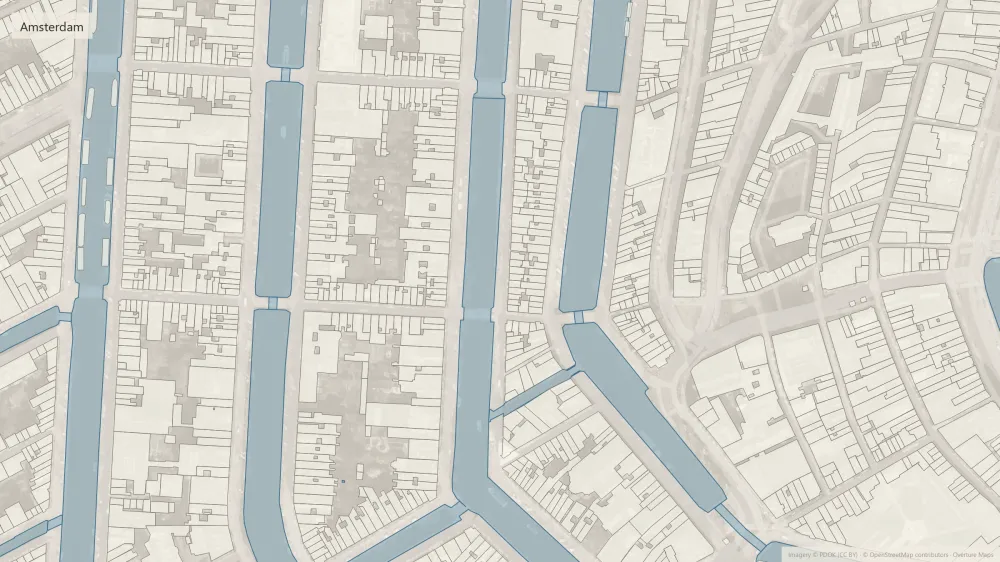

Amsterdam canal ring with the canals as filled water surfaces — Amsterdam, CAD ATLAS data: canals as closed water surfaces.Imagery © PDOK (CC BY 4.0) · © OpenStreetMap contributors · Overture Maps

Trees are CAD blocks on their own layer. Replace the block with your own symbol once, and every tree in the plan changes. Water comes as closed surfaces you can fill. The terrain is built from bare-earth elevation, with contour lines in the plan and a mesh in 3D.

Figure-ground plans of whole districts

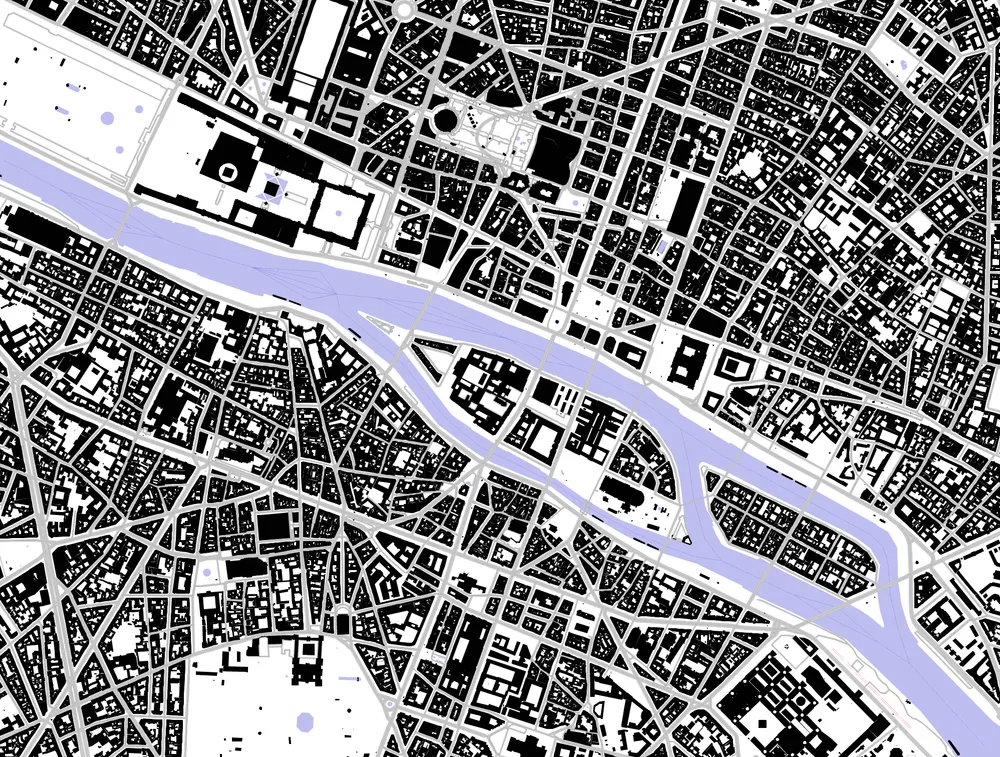

Figure-ground plan of central Paris — Paris: a CAD ATLAS figure-ground plan© OpenStreetMap contributors · Overture Maps

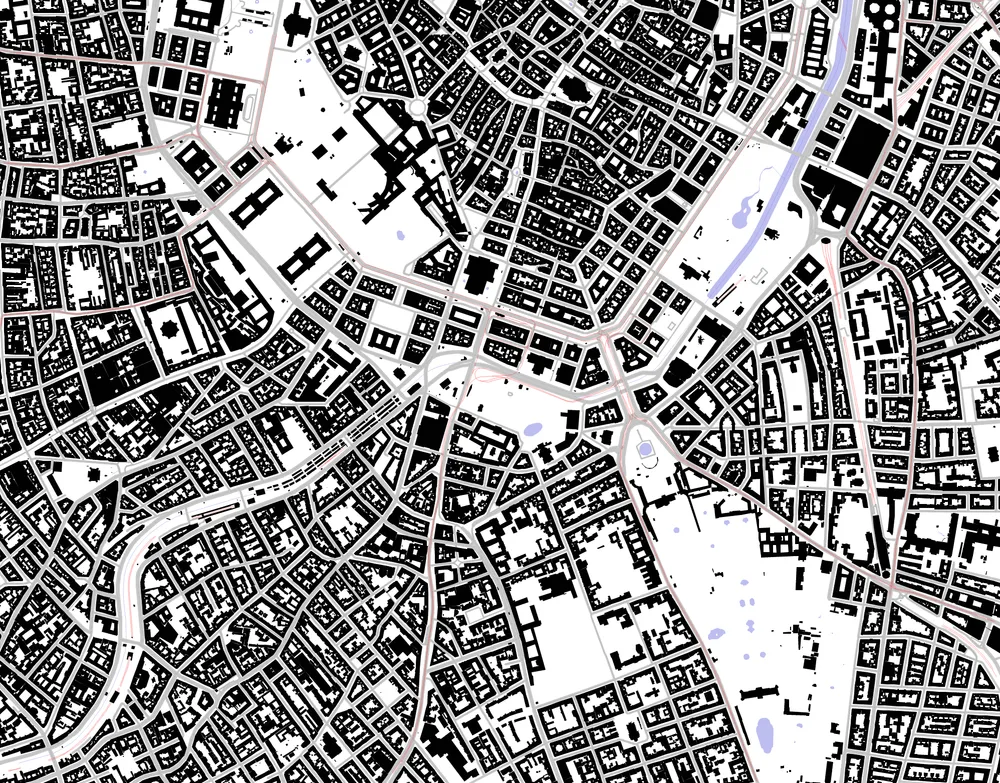

Figure-ground plan of the Vienna city centre — Vienna: a CAD ATLAS figure-ground plan© OpenStreetMap contributors · Overture Maps

The large figure-ground export covers a whole district. Every building is a closed surface, courtyards stay open, and you only fill the layer black.

Formats

2D plans come as DWG. 3D models come as DWG, 3DM, 3DS, OBJ, SKP and SAT, all in metres. The files open in AutoCAD, Archicad, SketchUp, Rhino, Vectorworks and more.

CADMAPPER is a trademark of its owner. CAD ATLAS is independent and not affiliated with, endorsed or sponsored by CADMAPPER. If something here is out of date, tell us and we will correct it.
